Steel Beam Structures
We create steel constructions that are specifically tailored to each building's particular characteristics. Each project is unique due to a number of elements, such as the number of floors supported by the structures, the width between supports (or spans), and the integration of both new and old layouts.
Box Frames
When there isn't a party wall agreement, or agreement to share a wall with a neighbouring building, and it's not feasible to support a structural beam by attaching it to a shared wall, box frame structures may be required.

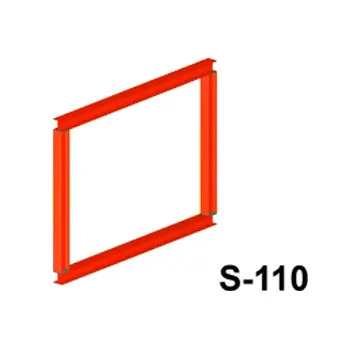

Box Frame
Two vertical columns, a top beam, and a ground beam at the bottom make up the four major components of box frame structures. Builders frequently use this structure to redistribute the weight of a building after removing a wall. In order to keep the building stable, the columns convey the weight down to the ground beam, which subsequently transfers it to the foundation.

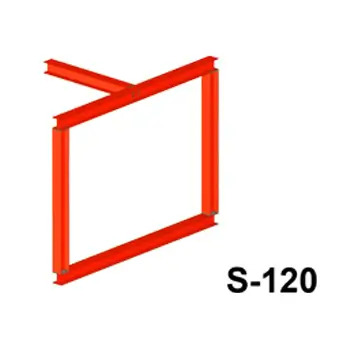

Box frame with cross beam
These constructions are commonly used by builders to replace side walls with cross beams. The cross beam blends in perfectly with the existing structure while serving as a strong horizontal support. This technique effectively makes room, guarantees structural integrity, and produces a smooth transition between the new addition and the original building.

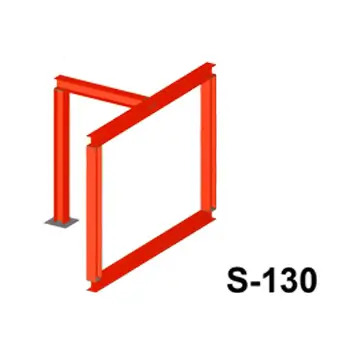

Box frame with cross beam and post
When a load must be carried to the foundation and there is no load-bearing wall to support the end of the beam, a post is inserted.

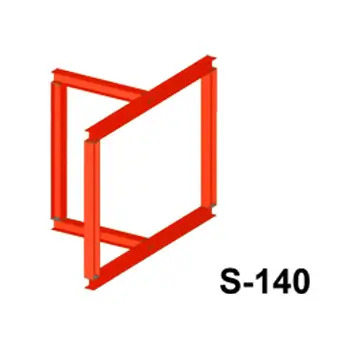

Box frame with perpendicular box frame
A bottom beam is necessary to distribute heavy loads onto the foundations.

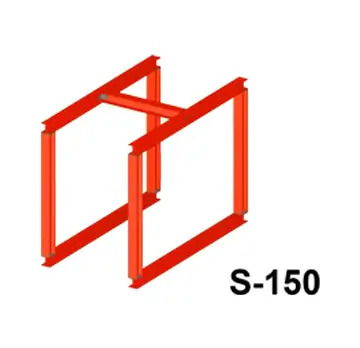

Two box frames with cross beam
When two parallel walls are removed and a perpendicular wall requires support, these structures are utilised. A chimney breast may occasionally be supported by the cross beam.

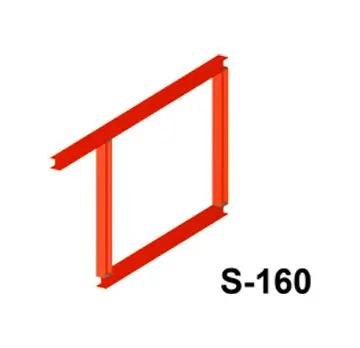

Box frame with extended beam
This arrangement can be used to move one of the columns toward the center when a wall is removed and the new layout does not permit a column against a wall, such as in a hallway.
Cross Beam

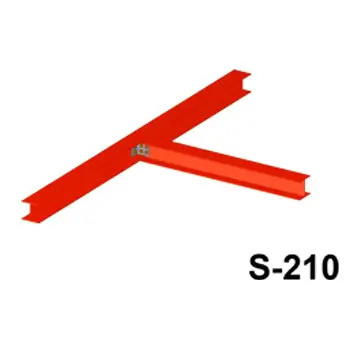

Cross beam
A structure made up of two members joined at right angles is called a cross beam.

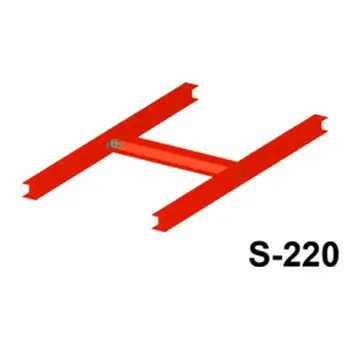

Two beams with cross beam
The “Gallow brackets” that are used to support a chimney breast can be replaced with this structure. The chimney itself is supported by the cross beam, while the parallel beams on either side of it span the chamber. In order to distribute the support over the entire chimney, a top plate is frequently attached to this beam.
Crank with cross beam
New garages and loft conversions frequently call for a cranked beam with a cross member to support the roof joists.
Goal Posts

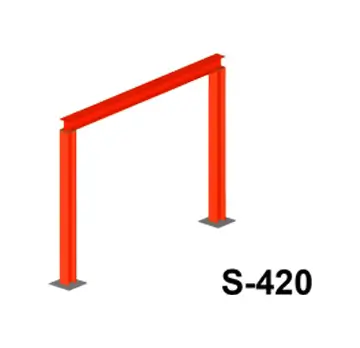

Goal post
A structure made up of two members joined at right angles is called a cross beam.

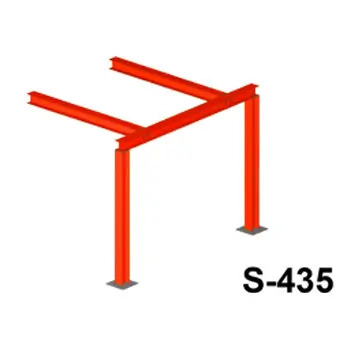

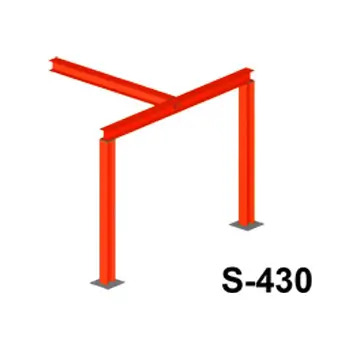

Goal post with cross beam
The “Gallow brackets” that are used to support a chimney breast can be replaced with this structure. The chimney itself is supported by the cross beam, while the parallel beams on either side of it span the chamber. In order to distribute the support over the entire chimney, a top plate is frequently attached to this beam.
Goal post with two cross beams
New garages and loft conversions frequently call for a cranked beam with a cross member to support the roof joists.

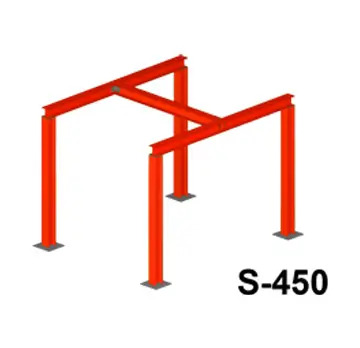

Two goalposts with cross beam
New garages and loft conversions frequently call for a cranked beam with a cross member to support the roof joists.
Apex Structures
Apex
An ‘apex’ is a double-cranked beam, which is supported by a main beam. This structure is used when adding an additional floor to an existing building.
Beams and Posts
Post with beam
This combination is used when one end of a beam is supported by a load-bearing wall, but the other end is not. The post provides the necessary support in this type of situation.
Corner beams with post
This structure is used in rear extensions, where the rear and side walls remain as large openings for concertina doors
Beam with mid support
When the span of the beam is too high for the beam’s load capabilities, it needs to be supported by a post. The position of the post is determined by the location of windows, doors, or another wall.
