Product Details

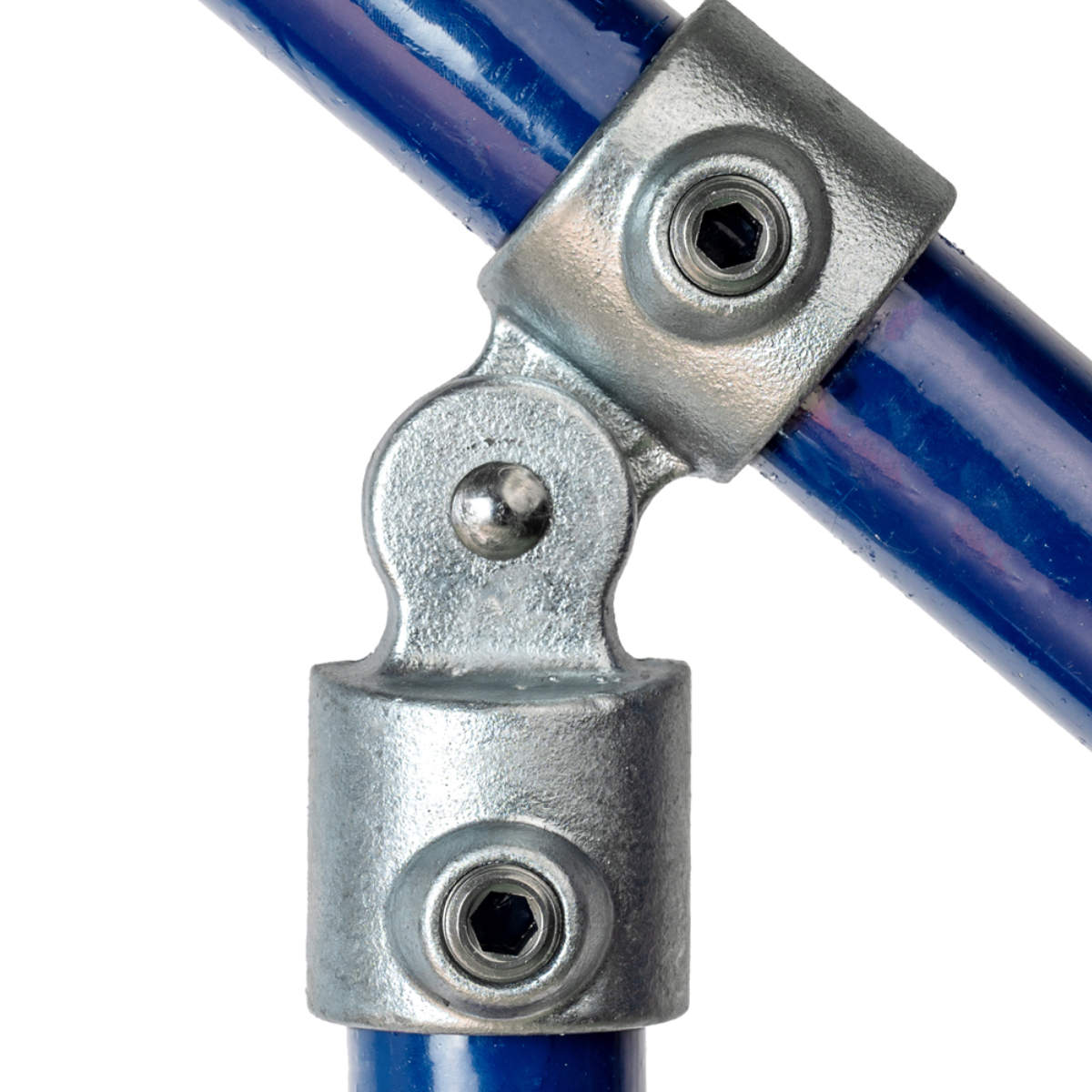

A single swivel combination fitting, the swivel has a travel of approximately 85° from the horizontal in both vertical directions. This fitting combines a KC173M and a KC173F. This clamp does not allow tubes to be joined within the fitting. NOT DESIGNED TO WITHSTAND LOADS.
Dimensions
| Ref. | Tube (mm) | a | b | kg/pc |
|---|---|---|---|---|
| A | 26.9 | – | – | |
| B | 33.7 | 63 | 39 | 0.58 |
| C | 42.4 | 72 | 45 | 0.82 |
| D | 48.3 | 78 | 50 | 0.96 |
| E | 60.3 | – | – |
