Product Details

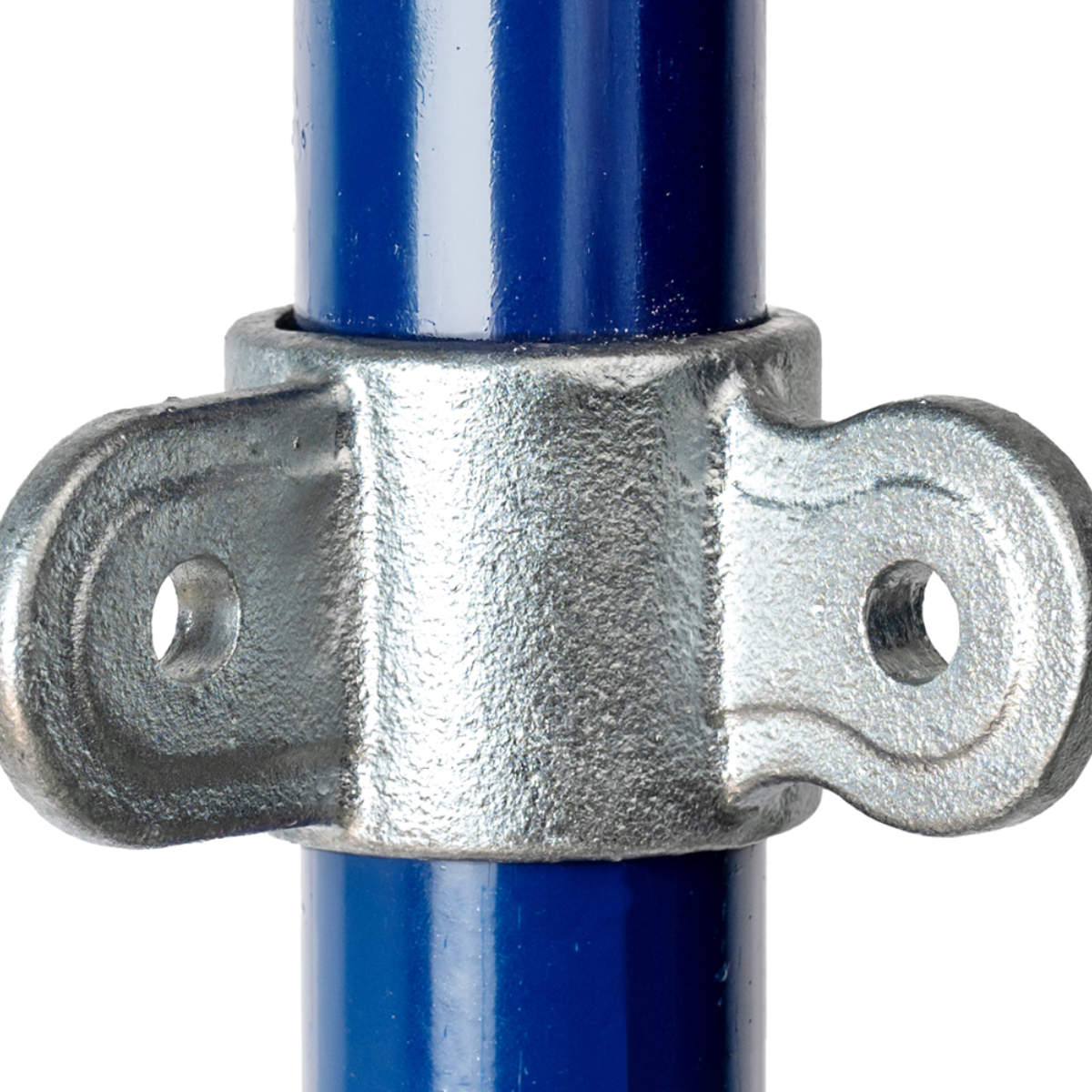

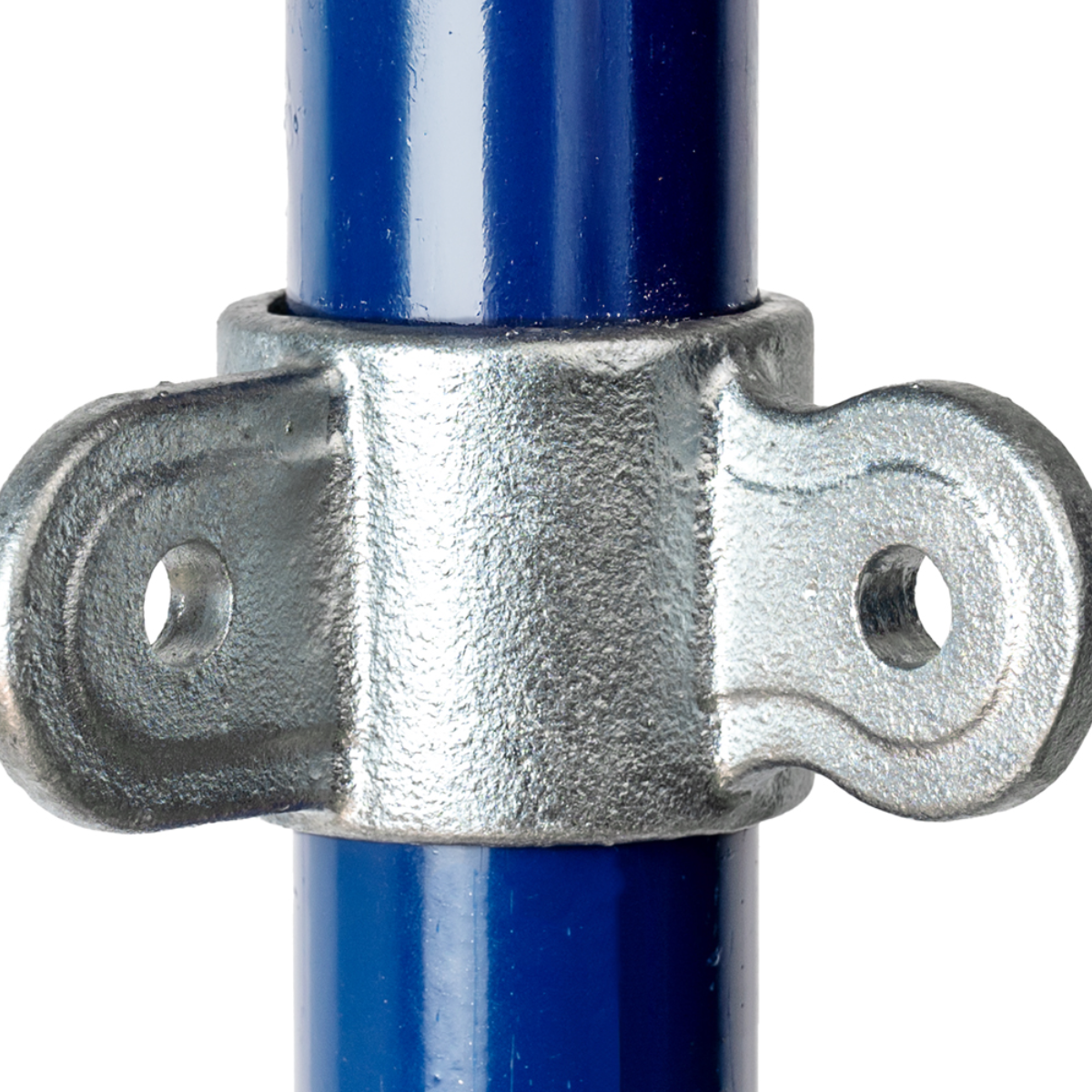

A double male in-line fitting with the lugs at 90° to each other, the male part of the KC168 swivel combination. This fitting can also be used to secure various types of infill panels in place at 90° to each other. This clamp does not allow tubes to be joined within the fitting. NOT DESIGNED TO WITHSTAND LATERAL LOADS.
Dimensions
| Ref. | Tube (mm) | a | b | Ø | kg/pc |
|---|---|---|---|---|---|
| C | 42.4 | 49 | 68 | 10 | 0.41 |
| D | 48.3 | 52 | 71 | 10 | 0.45 |
