Product Details

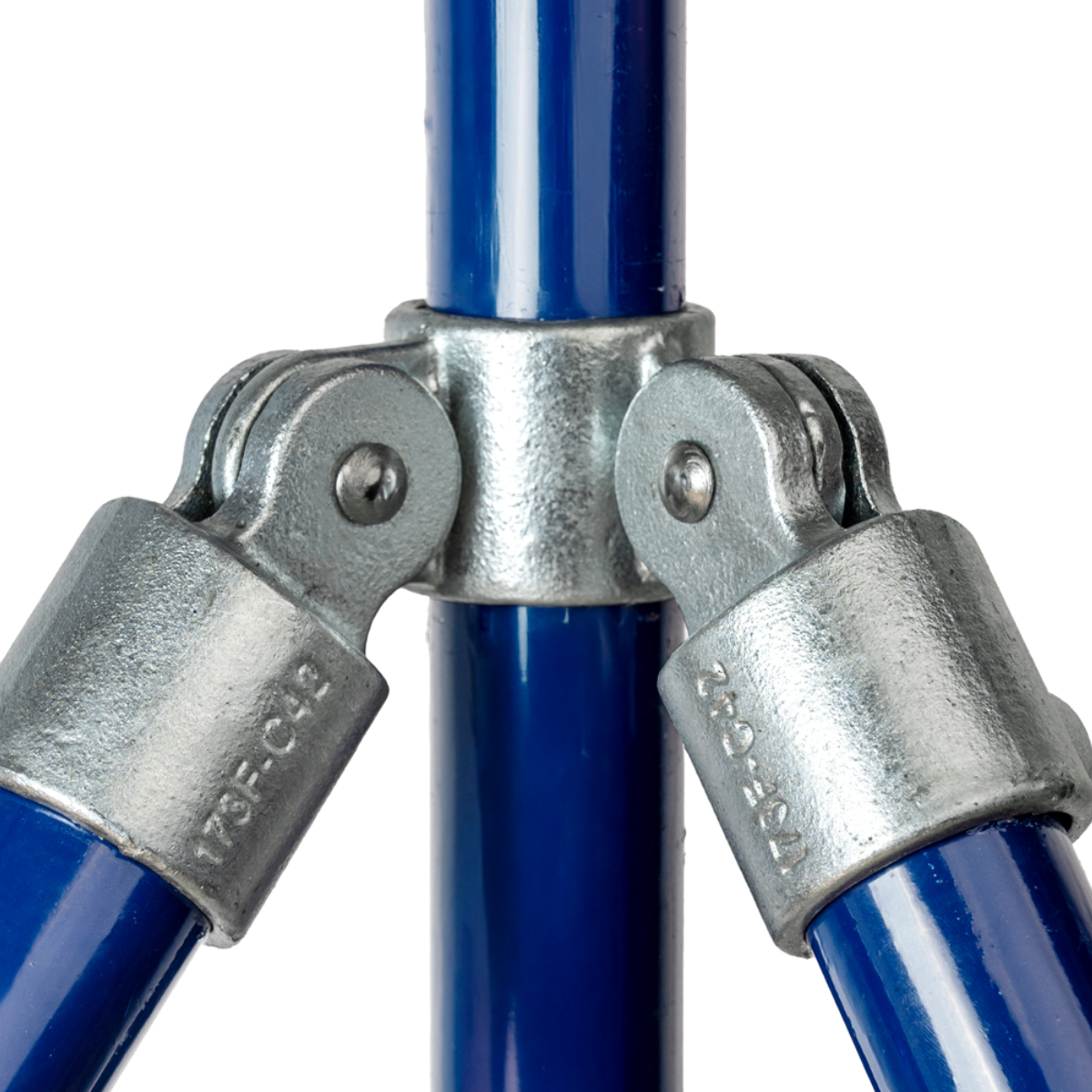

A corner combination fitting with the swivel connectors at 90° to each other, each swivel has a travel of approximately 85° from the horizontal in both directions. This clamp does not allow tubes to be joined within the fitting. NOT DESIGNED TO WITHSTAND LATERAL LOADS.
Dimensions
| Ref. | Tube (mm) | a | b | kg/pc |
|---|---|---|---|---|
| B | 33.7 | – | 63 | 0.99 |
| C | 42.4 | 49 | 72 | 1.38 |
| D | 48.3 | 52 | 78 | 1.62 |
