Product Details

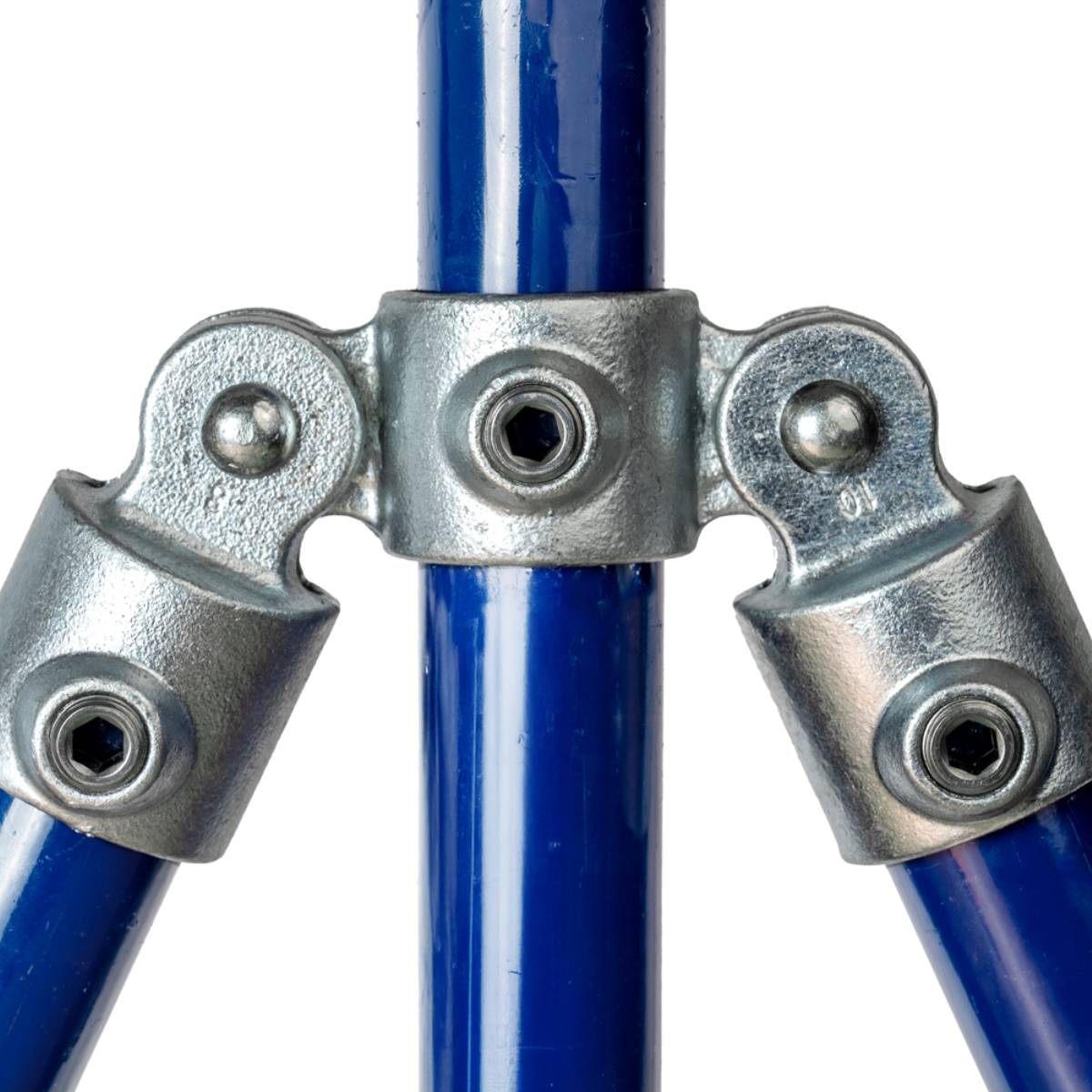

A versatile fitting with two swivel connectors at 180° to each other. Both swivels have a travel of approximately 85° from the horizontal in both vertical directions. Tube cannot be joined in this fitting. NOT DESIGNED TO WITHSTAND LATERAL LOADS.
Dimensions
| Ref. | Tube (mm) | a | b | kg/pc |
|---|---|---|---|---|
| B | 33.7 | 63 | – | 0.99 |
| C | 42.4 | 72 | 85 | 1.38 |
| D | 48.3 | 78 | 104 | 1.62 |
